70ton 4 Axle Flatbed Trailer

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Dimension(mm): 13000x2500x1550mm
Loading capacity(ton): ≤70T
Axles: 4 axles, haiming Brand
Tire: 16 units, 12.00R22.5
Suspension: Mechanical suspension
Landing Gear: JOST brand
Platform: 3mm-thick checkered plate
Twist Locks: 4,8,12 sets (lifting or screw type)
Email
Message
Detail

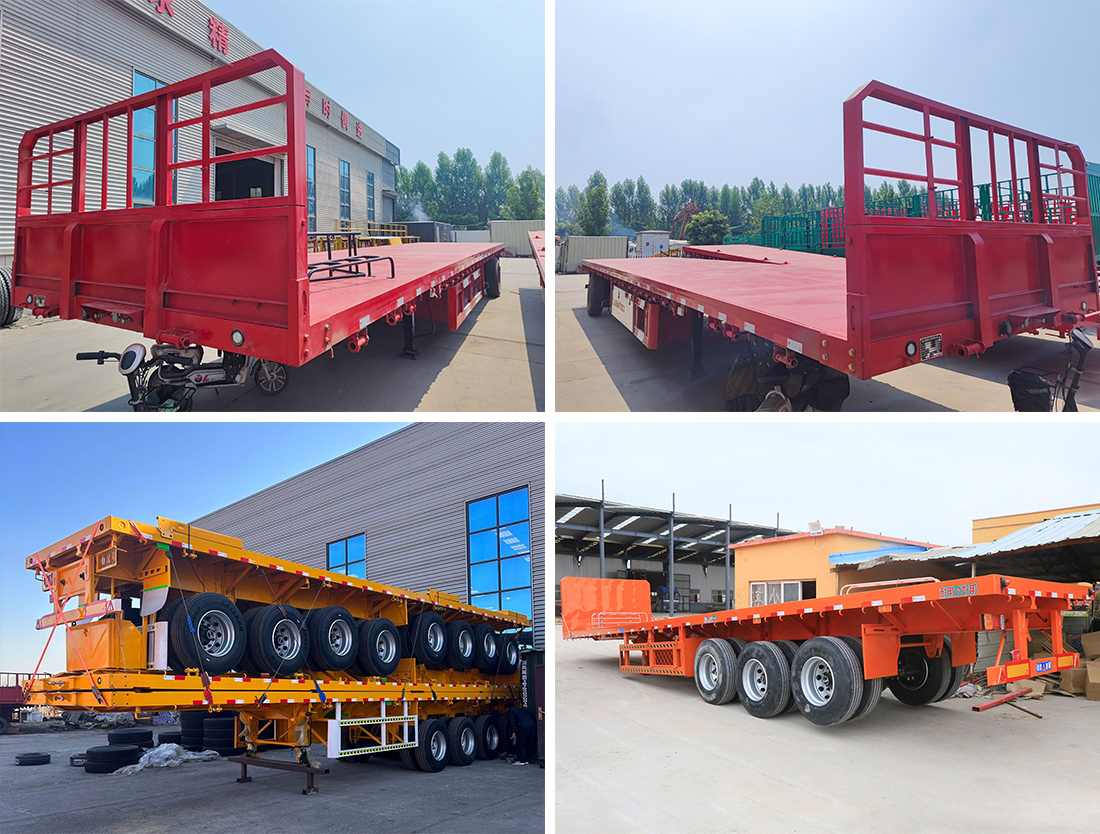

Flat bed semi trailer
Features: Flatbed plate semi -trailer is a kind of semi-trailer without wall and canopy, with simple structure and stong adaptability,
Application scenario: It is mainly used to transport various goods with unlimited length,width and height. such as construction materials, steel products and heavy machinery

Technological development: In recent years , with the application of light weight and strength materials , the loading capacity of plate semi trailer has been greatly improved




We can provide all the models you need and support customization. Welcome to leave your inquiry if you have any questions!

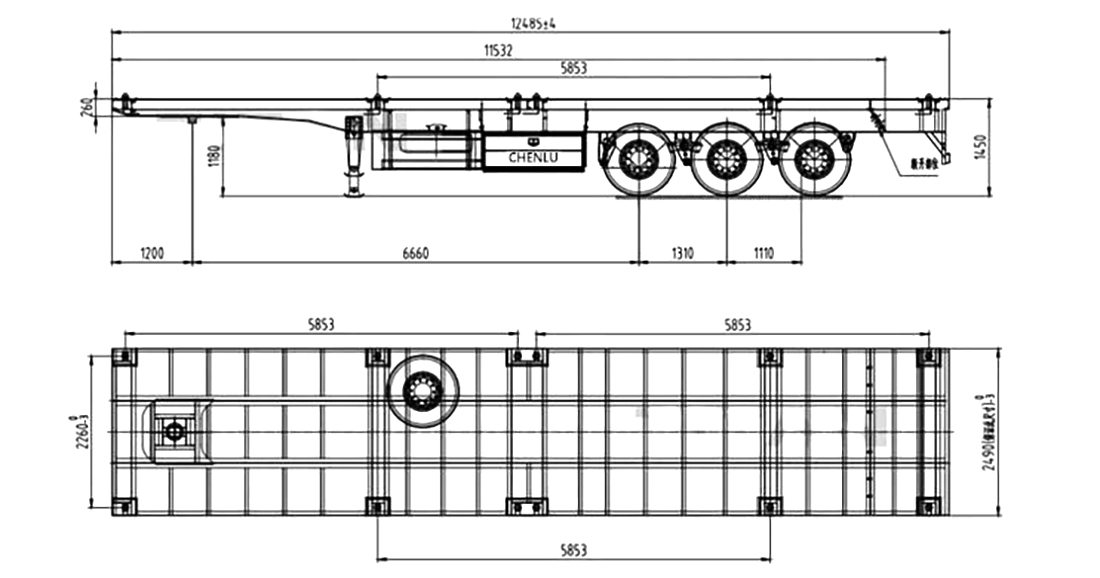

Detail Specification for flatbed semi trailer
Items
Flat bed semi tailer
Tare Weight
7.0 Tons
Payload
50Tons
Size
12400x2610x1550mm
Frame
Main Beam: Opting for high strength Q345B steel, 520mm deep welded I-section main beams, Top flange thickness 14mm, Bottom flange
thickness 16mm, Middle flage thickness 8mm
Cross Beam: Heavy duty thickened 10# channel steel
Side Beam: Heavy duty 18# channel steel
Floor: 3mm thickness checkered plate
Axles
13/16/20 tons, axle amount optional like 2/3/4/5/6 axle ... axle brand optional like SAF/FHWA/BPW etc
King pin
2.00"(50#), bolting king pin, JOST brand
Suspension
Heavy duty type tri-axles suspension with equalizers. American design
Steel Spring
Six sets of reliable famous brand , 10pcs leaf spring, thickness 13mm. width 90mm
Landing gear
28tons lifting capacity , two speed
Tire specs
12R22.5 Triangle brand , or another brand according to customer
Rim
9.00-22.5 brand according to customer
Paiting
Sanding , anti-corrosion , one primer paining add two layer top coat painting
Side Gurd
According to customer
Electrical system
One unit of 24v 7-pin ISO 1185 socket: LED light
spare tire
Two set of heavy duty spare wheel carriers, indluding a riser
Tool Box
One Piece (1.0 x 5.0 m) with 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar

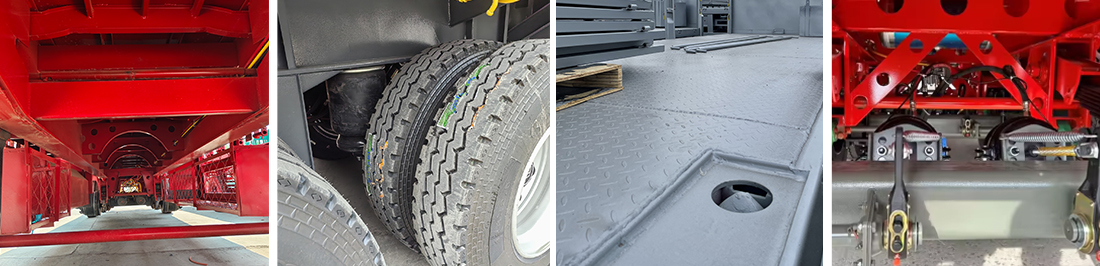

Chassis Frame

It is mainly used to enhance the loadbearing capacity and overall rigidity of the vehicle body, ensure the stability and durability of the vehicle when transporting heavy-loaded items.

Suspention - Anti-Tire Abrasion

Specially designed antiTire abrasion suspension system prevent tire deflection after loading and avoids tires to the maximum extent worn out. and easy to disassemble and maintain.

Landing Gear

The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C.

Axle suspension and brake system

BPW Fuwa worldwide best axles worki with WABCO brake valve, More effectively brake for safe and save tire cost , Fix quality springs and suspension , support longer service life, save maintain cost .




Shandong Haiming Import and Export Co., Ltd. was established in 2018 with a registered capital of more than 90 million yuan. It is a manufacturer of large trailers and heavy trucks integrating product design, research and development, production and sales. The factory is located in Shandong Province with a plant area of 30,000 square meters.

The company's products cover plate, low plate, container, warehouse, dump, van and other series of semitrailer, our company and SinotruK, FAW, Shaanxi automobile, Dongfeng and other brands have a deep cooperation relationship, can provide you with dump trucks and tractors. In addition, we are working hard to develop new products to meet different requirements. We have export licenses, and our products are exported to more than 50 countries and regions worldwide, to Central and South America, the Middle East, Central Asia and Africa. The company has gathered strong technical force, has strong market competitiveness and R & D capability, has advanced stamping, welding equipment and modern production process and perfect quality management system. Established and improved from the product pre-sale, sale, after-sales service management system.







Our company's flatbed trailers are rigorously tested before they leave the factory to ensure quality. We have professional technical personnel to operate.

In addition, spray a layer of wax on the semi-trailer to prevent seawater erosion, and then pack a layer of rain cloth to prevent moisture.






How To Transport The Truck Trailers?
A:We mainly transport it by ro-ro ship, bulk ship or in containers.
Can You Supply The Spare Parts Of This Truck Trailer?
A:Yes, We can supply the spare parts for all the truck trailers we selling. We have spare parts department professional for this. Once you need spare parts we can supply immediately.
How Do You Transport The Trailers?
A:There are optional transportation manners including RORO ship, bulk cargo ship, 40′ HQ to meet your requirements.
Can I Customize The Painting And The Logo?
A:Yes, we offer customized logo according to your need.
Can You Satisfy My Special Requirement?
A:Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity! And we think about customer's demands considerately, provide professional trailer designed solutions.
How Long Do You Need To Finish A Trailer?
A:It usually takes round 10 days to finish the common low bed trailer, container trailer, skeleton trailers after confirming the order. Oil tanker trailer , bulk cement trailer and special trailer needs round 20 days.
