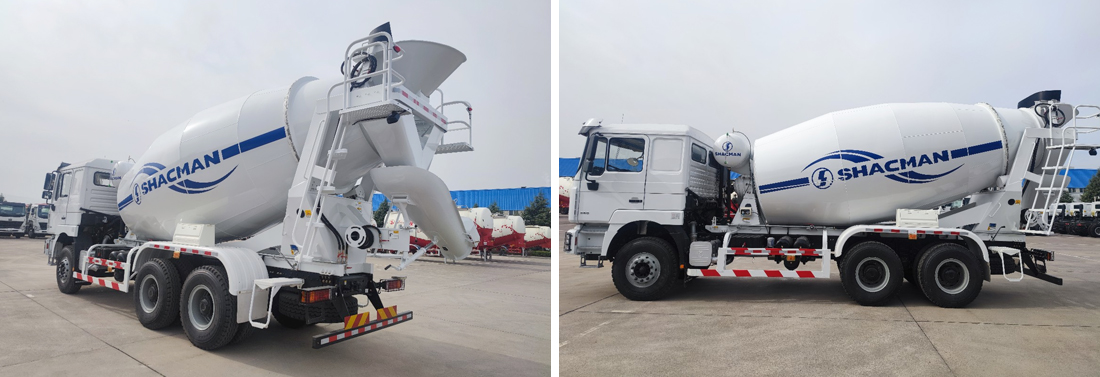

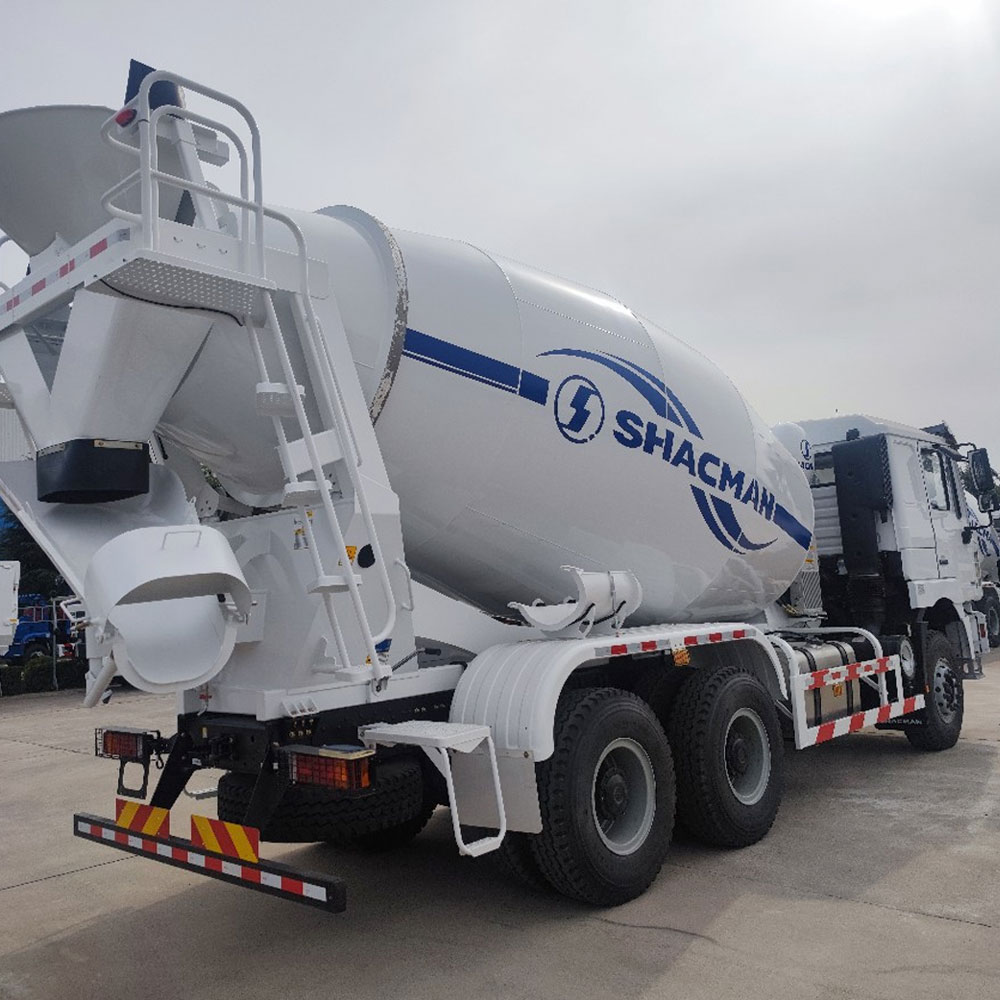

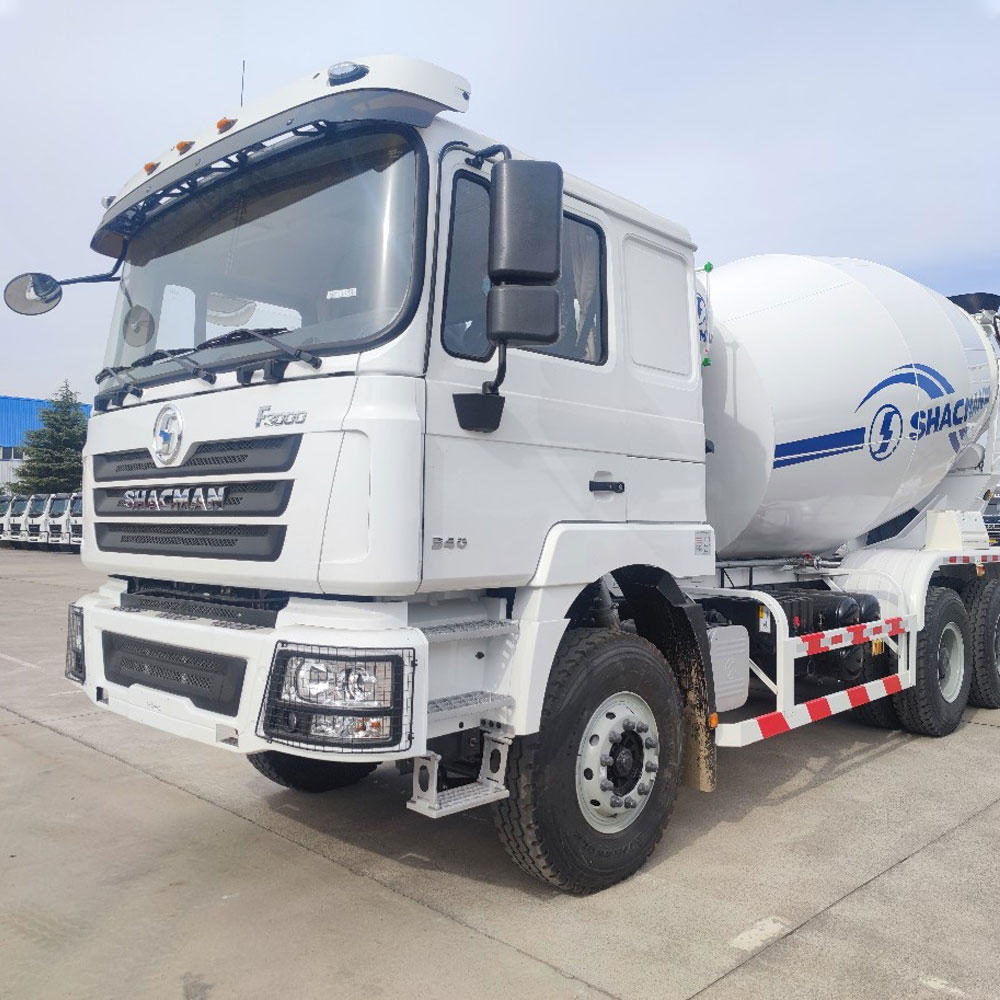

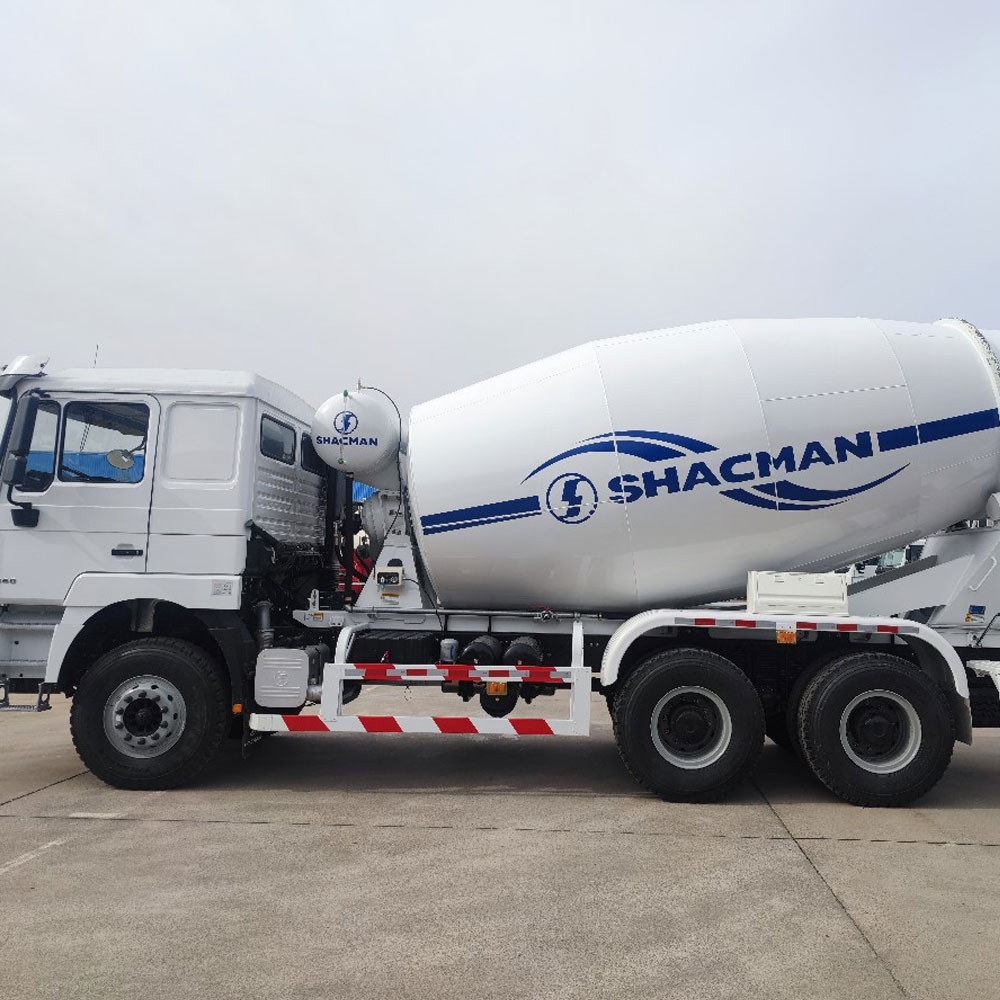

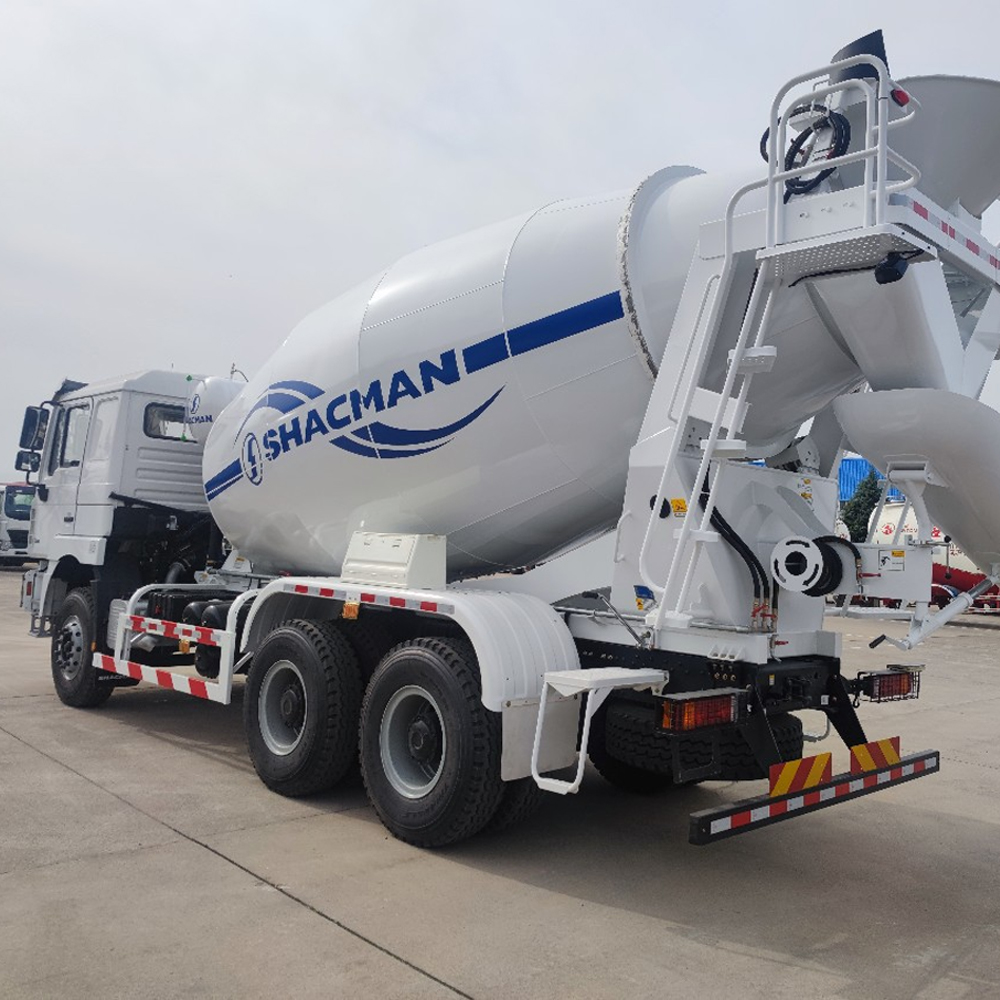

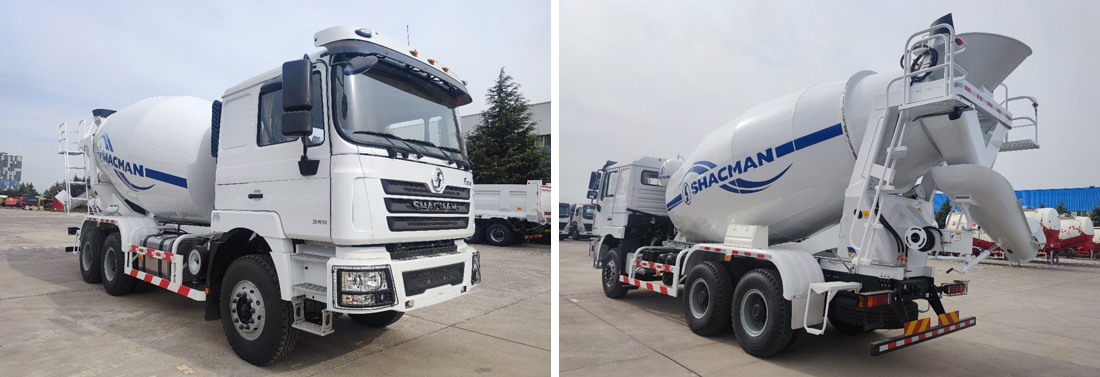

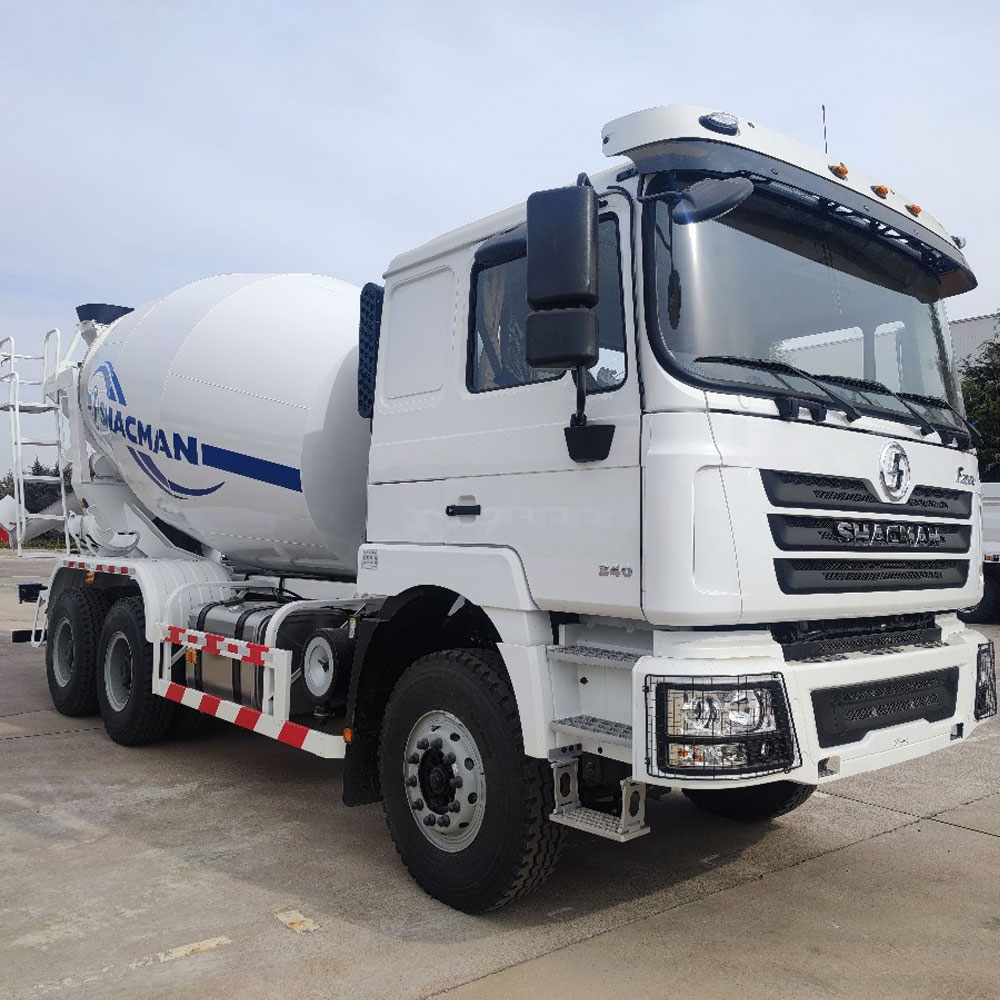

Shacman F3000 6x4 Cement Mixer Truck
This SHACMAN F3000 is the pinnacle of efficiency and reliability in the construction world! With its solid construction and powerful performance, it can handle concrete mixing and transport with ease.
Concrete mixing truck adopts high_strength rear double bridge of Shaanxi Qi Delong chassis, strong bearing capacity, no disassembly and maintenance, the use of Weichai engine, power enough, speed up, economy and fuel saving, Faust gearbox, large torque, fast climbing, is a super powerful mixing truck.
F3000 concrete mixing truck adopts highstrength rear double bridge of Shaanxi Qi Delong chassis, strong bearing capacity, no disassembly and maintenance, the use of Weichai engine, power enough, speed up, economy and fuel saving, Faust gearbox, large torque, fast climbing, is a super powerful mixing truck.
It can provide various qualified concrete for roads, bridges, tunnels, houses, water tunnels and other projects.Widely used in various construction projects
Advantage:
1, super loadbearing, durable: the use of advanced international technology integrated rear support, the overall fatigue life increased by 1 times, reinforced cable-stayed beam to ensure sufficient strength and stiffness of the vehicle rear suspension;
2, large feed caliber: the feed hopper caliber exceeds the average level of the same industry 3.5%, the feed efficiency is higher than the same industry level of more than 5%, suitable for different mixing stations and construction site needs;
3, efficient discharge device: the use of fluid mechanics and bionics principle, the chute lining with high-performance wear resistant materials to ensure the discharge progress, the speed is higher than 20% of the same industry;
4, advanced blade design: blade continuous helix design, stirring evenly, fast discharge, low residual rate, key parts of the design of pressure relief hole layout, so that the life of the tank and blade;
5, humanized cleaning device: integrated water tank pressure type water supply, gas pressure is convenient to achieve water and mixing tank, blade, inlet and outlet place cleaning, quick and convenient switching, but also real-time observation of pressure and water level;
SPECIFICATIONS OF SHACMAN F3000 6×4 MIXER TRUCK
| SHACMAN F3000 6×4 MIXER TRUCK |
| Product name | Shacman F3000 Concrete Mixer Truck |
| Dimension(L x W x H)(mm) | 9500×2500×3950mm |
| Total mass(kg) | 25000kg |
| Front/rear suspension(mm) | 1525/2445 |
| Engine | WP10.380E22,380HP, Euro 2, |
| Cabin | F3000,one sleeper,with air conditioner |
| Rated speed(rpm) | 2200rpm |
| Emission Standard | E-II |
| Displacement(L) | 9.726L |
| Driving type | 6×4 |
| Wheel base(mm) | 3775+1400mm |
| Clutch | φ430diaphragm spring |
| Front axle | 9.5T MAN 9500kg |
| Type | 12R22.5,10+1pc |
| Brake system | ABS(Four channel) |
| Tank capacity(L) | 400L |
| Max. speed (km/h) | 85km/h |
| Color | optional |
| Material of tanker | Q345 |
| Thickness | Thickness of canister wall:5mm,end socket:6mm |
Our dump trucks can be replaced with new tires, new seats, new center consoles, new gearboxes, new clutches, new engines, etc.
