HaimingFactory offers lowbed trailers designed to carry 30tons, 40tons, 60tons, 80tons, 100tons, 120tons, 150tons. It's main cargo platform is low, which ensures the stability of transportation. 4 axles lowbed trailers use high strength steel material to ensure the capacity, the load can be up to 100 to 120 ton payload. We adopt famous brand parts, like WABCO braking valve, JOST land gearing, FUWA, BPW axles, ensure the long service life of the trailers.
We can provide all the models you need and support customization. Welcome to leave your inquiry if you have any questions!
Series of low flat semi-trailer has flat plate, concave beam and tire exposed structure, its frame is stepped, longitudinal beam section is I-shaped, with high stiffness, high strength characteristics:
The main plane of the frame cargo platform is low, which ensures the smoothness of transportation and is suitable for carrying all kinds of construction machinery, large equipment and steel:
The use of threeaxis balance type, twoaxis balance type or rigid suspension, equipped with a mass balance block between the front and rear leaf springs, can make the deflection of the front and rear leaf springs equal changes, so that the front and rear axes are balanced:
Carbon dioxide gas protection welding, the entire frame by shot peening treatment, so that the vehicle more beautiful.
Lowbed Lowboy Semi Trailer(Customerize and OEM Service Available) |
| 2 axles lowbed semi trailer | 3 axles lowbed semi trailer | 4 axles lowbed semi trailer |
| | | |
| | | |
| | | |
| | | |
| | |
| Hydraulic ladder or Mechanical spring ladder |
| Height:500mm, upper plate is 16mm, middle plate is 8mm, down plate is 18mm |
Material is Q345B Steel. |
| 250mm I beam; 20mm channel steel ( Material is Q235steel ). |
| 4mm thickness diamond steel plate |
| Mechanical suspension (Air suspension optional) |
| 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12
(specially intended for overseas markets) |
| 12R22.5 / 11.00R20 8pcs (Other size optional) |
| 9.00-22.5 / 11.00R20 8pcs (Other size optional) |
| 2’’/3.5’’ bolt type |
| 28 Ton two speed |
| Double air chamber ,brake valve,45L air tanks ;ABS optional |
| LED light , 7 ways ,24V |
| One tooling box with a set of standard trailer tool |
| 1.Sand blasting processing clean rust. |
2.Coat of anticorrosive primer. |
3.Coats of finish urethane paint. |
4.Color as customer choice. |
| The cargo platform is lower than others, it is applicable for unsound road condition, and ensuring the stablenessof the
transportation. |
|
| It is applicable for the transportations of the mechanical equipment, large objects, highway construction equipment, large tanks,
power plant equipment or machine, and all sorts of steel products. |
|

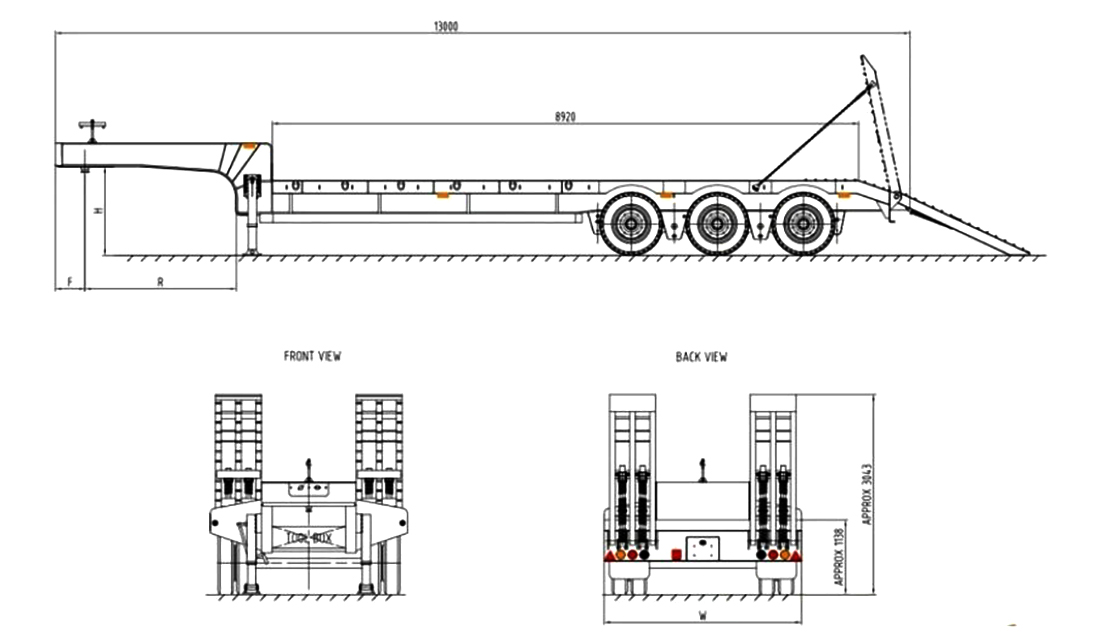

| It's concave structured with tyre appeared style, the height of the cargo's carrying platform from ground is 900mm, (ladders
belong to optional components), with the overall height of 1710 mm. |
|
| We can design model according to client's requirement |

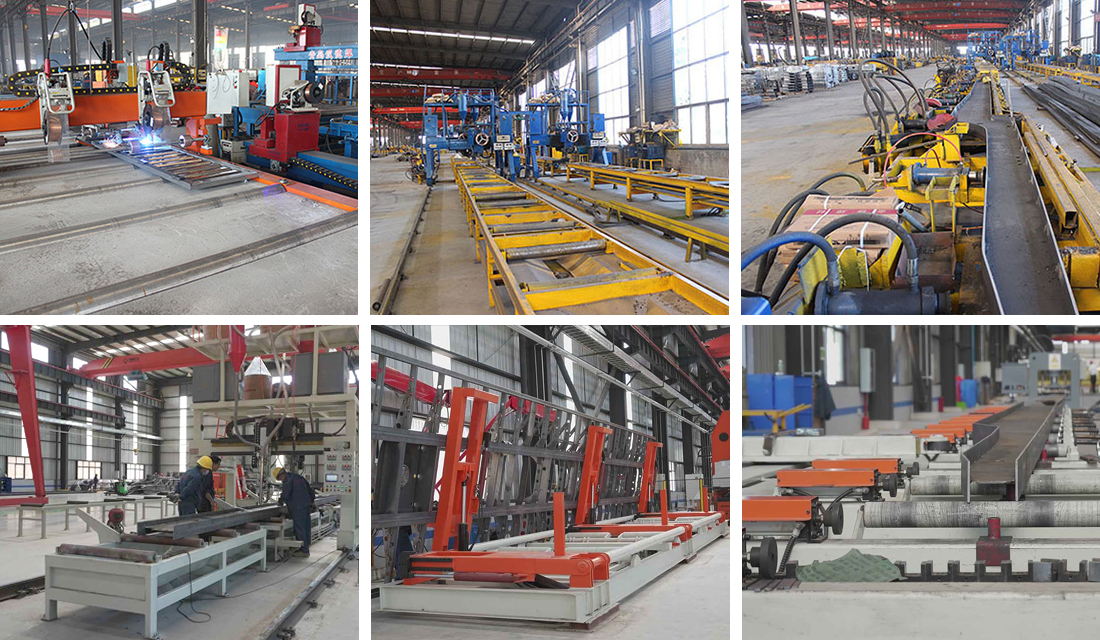

Shandong Haiming Import and Export Co., Ltd. was established in 2018 with a registered capital of more than 90 million yuan. It is a manufacturer of large trailers and heavy trucks integrating product design, research and development, production and sales. The factory is located in Shandong Province with a plant area of 30,000 square meters.
The company's products cover plate, low plate, container, warehouse, dump, van and other series of semitrailer, our company and SinotruK, FAW, Shaanxi automobile, Dongfeng and other brands have a deep cooperation relationship, can provide you with dump trucks and tractors. In addition, we are working hard to develop new products to meet different requirements. We have export licenses, and our products are exported to more than 50 countries and regions worldwide, to Central and South America, the Middle East, Central Asia and Africa. The company has gathered strong technical force, has strong market competitiveness and R & D capability, has advanced stamping, welding equipment and modern production process and perfect quality management system. Established and improved from the product pre-sale, sale, after-sales service management system.
How To Transport The Truck Trailers?
A:We mainly transport it by ro-ro ship, bulk ship or in containers.
Can You Supply The Spare Parts Of This Truck Trailer?
A:Yes, We can supply the spare parts for all the truck trailers we selling. We have spare parts department professional for this. Once you need spare parts we can supply immediately.
How Do You Transport The Trailers?
A:There are optional transportation manners including RORO ship, bulk cargo ship, 40′ HQ to meet your requirements.
Can I Customize The Painting And The Logo?
A:Yes, we offer customized logo according to your need.
Can You Satisfy My Special Requirement?
A:Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity! And we think about customer's demands considerately, provide professional trailer designed solutions.
How Long Do You Need To Finish A Trailer?
A:It usually takes round 10 days to finish the common low bed trailer, container trailer, skeleton trailers after confirming the order. Oil tanker trailer , bulk cement trailer and special trailer needs round 20 days.
